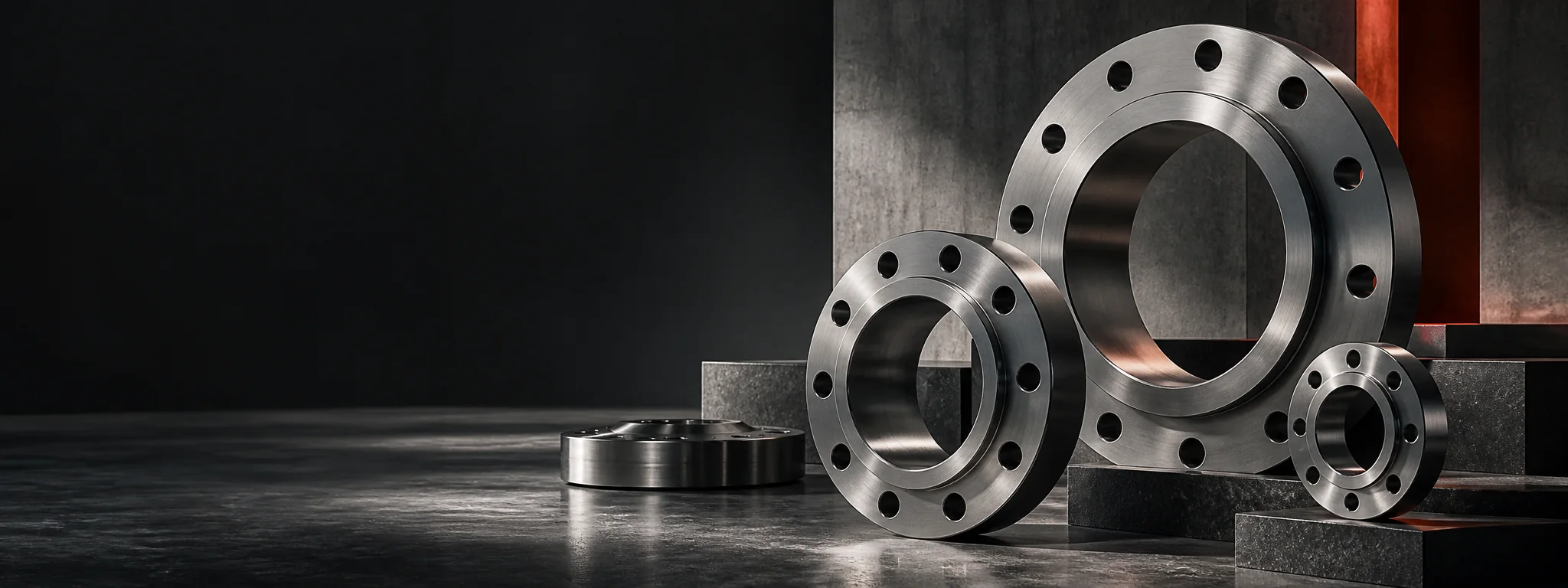

Flanges.
Pressure-containing connections sourced by design standard, rating, facing, bore, material and inspection requirement.
Defined by the requirement.
We coordinate the sourcing route around material, condition, dimensions, quantity, applicable standard, inspection, documentation and delivery. Manufacturing and processing routes are selected to suit the complete requirement.
| Form / type | Sourcing context |
|---|---|
| Weld neck | Tapered hub for butt-welded pressure connections. |
| Slip-on and lap joint | Assembly-focused designs subject to system requirements. |
| Blind | Closure flanges for piping and equipment openings. |
| Socket-weld and threaded | Compact forged connections within standard limits. |
Materials in product context.
| Material family | Representative grades | Product / standard route | Typical application context |
|---|---|---|---|
| Stainless Steel | F304/F304L, F316/F316L, F321, F347 | ASME B16.5 / B16.47 flanges | Process, food and corrosion-resistant piping |
| Duplex & Super Duplex | F51, F53, F55 | ASME dimensional routes; ASTM A182 material | Offshore, seawater and chloride service |
| Carbon Steel | A105; A350 LF2 | Standard and low-temperature flanges | General process and low-temperature systems |
| High-strength carbon steel | A694 F52, F60, F65 | High-yield transmission flanges | Pipeline and high-pressure systems |
| Nickel Alloys | ASTM B564 nickel-alloy grades | Alloy flanges and fittings | Corrosive chemical and elevated-temperature service |
Technical data is provided for preliminary sourcing guidance. The applicable customer specification, drawing, purchase order and latest standard revision govern each requirement.
Common specification routes.
| Product route | Principal standards | Requirement focus |
|---|---|---|
| Forged alloy and stainless flanges | ASTM A182/A182M; ASME SA-182 | Grade, heat treatment and mechanical tests |
| Carbon steel forgings | ASTM A105/A105M | Pressure-system flange and fitting forgings |
| Low-temperature forgings | ASTM A350/A350M | Impact-tested grades and class |
| High-yield pipeline forgings | ASTM A694/A694M | Grade and mechanical-property route |
| Nickel-alloy forgings | ASTM B564 | Alloy, condition and product form |
| Dimensional standards | ASME B16.5; ASME B16.47; MSS SP-44 | NPS, class, facing, dimensions and tolerances |
Technical data is provided for preliminary sourcing guidance. The applicable customer specification, drawing, purchase order and latest standard revision govern each requirement.
Control from enquiry to release.
Bhansali reviews requirements and documentation. QA/QC is coordinated by the in-house Bhansali team, material testing is verified through independent laboratories, and third-party inspection can be coordinated through agencies such as TÜV, SGS and Lloyd’s.
Review can include material certificates, heat traceability, manufacturing records, dimensional reports, NDE, test results, marking, packing and the final documentation package.
Connect form, material and application.
Send the complete flanges requirement.
Include material, grade, standard, dimensions, quantity, testing, documentation and delivery need.
