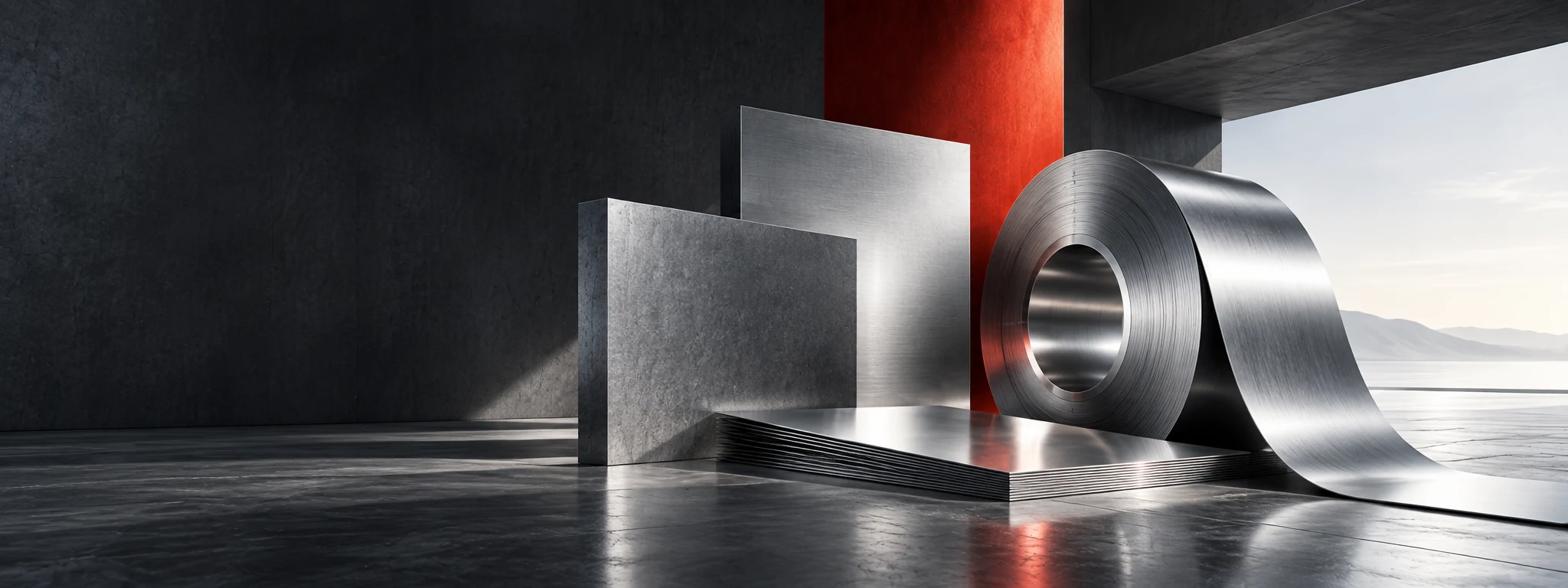

Plates, sheets & coils.
Flat products sourced around material, grade, condition, finish, dimensions, applicable specification and downstream fabrication.
Flat form. Application-led supply.
Plate, sheet, coil and strip can be sourced in corrosion-resistant, heat-resistant, non-ferrous and engineering alloys. The correct route depends on the required standard, thickness, width, surface, edge, flatness, temper or heat-treatment condition.
Supply may originate as mill plate, coil, cut-to-length sheet, slit strip or precision strip, with processing coordinated to the requirement.
Flat products across material systems.
| Material route | Representative grades | Common flat forms | Typical application context |
|---|---|---|---|
| Stainless Steel ↗ | 304L, 316L, 321, 347, 904L, 430, 17-4PH | Plate, sheet, coil, slit strip and precision strip | Process equipment, tanks, cladding, food systems and fabricated assemblies |
| Duplex & Super Duplex | 2205 / S32205-S31803; 2507 / S32750; S32760 | Plate, sheet and coil subject to grade and mill route | Chloride service, offshore equipment, desalination and heat-transfer equipment |
| Nickel Alloys | Alloys 400, 600, 625, 718, 800H/HT, 825 and C-276 | Plate, sheet, coil and strip subject to alloy | Corrosive process equipment, hot-section parts, aerospace and power applications |
| Aluminium | 2024, 5052, 5083, 6061, 6082 and 7075 | Plate, sheet, coil and strip | Aerospace, marine, transport, structural and lightweight fabricated parts |
| Copper & Brass | C11000, C12200, C26000 and application-specific copper alloys | Plate, sheet, strip and coil | Electrical conductors, heat-transfer parts, architectural and formed components |
| Carbon & Alloy Steel | A36; A516 Gr 70; A387 grades; wear and engineering-steel routes | Hot-rolled plate, sheet and coil | Structures, pressure vessels, machinery, wear parts and general fabrication |
Grades and applications shown are representative routing guidance. Confirm product standard, condition, dimensions and service requirements before selection.
Specify the product route clearly.
| Material family | Principal product standards | Related requirements |
|---|---|---|
| Stainless steel | ASTM A240/A240M; ASME SA-240; EN 10088-2 | ASTM A480/A480M general requirements; EN 10029 / EN ISO 9444 / EN ISO 9445 dimensional routes as applicable |
| Austenitic stainless, annealed or cold-worked | ASTM A666/A666M | Condition, tensile properties, finish and dimensional requirements |
| Precipitation-hardening stainless | ASTM A693 | Solution-treated supply and specified precipitation-hardening condition |
| Carbon structural plate | ASTM A36/A36M; ASTM A572/A572M; EN 10025-2 | ASTM A6/A6M or applicable EN dimensional and delivery requirements |
| Pressure-vessel carbon steel | ASTM A516/A516M; ASME SA-516 | ASTM A20/A20M general requirements; normalized condition or supplementary tests when specified |
| Cr-Mo pressure-vessel alloy steel | ASTM A387/A387M; ASME SA-387 | Grade, class, heat treatment and supplementary requirements |
| Nickel and nickel alloys | ASTM B127, B168, B424, B443, B575 | Alloy-specific chemistry, condition, mechanical properties and dimensions |
| Aluminium and aluminium alloys | ASTM B209/B209M; EN 485 series | Alloy, temper, surface, tolerances and inspection requirements |
| Copper and copper alloys | ASTM B36/B36M; ASTM B152/B152M; EN 1652 | Alloy designation, temper, dimensions and edge condition |
| Product route | Indicative thickness | Indicative width | Supply notes |
|---|---|---|---|
| Precision strip | From approximately 0.05 mm | Slit to requirement within mill capability | Grade, hardness, flatness, edge and surface are application-specific. |
| Cold-rolled coil / sheet | Approximately 0.30-8.00 mm | Up to approximately 2,000 mm | 2B, 2D, 2R/BA, polished and special finishes subject to route. |
| Hot-rolled coil / sheet | Approximately 2.3-12.0 mm | Up to approximately 2,000 mm | Hot rolled, annealed and pickled or mechanically descaled routes. |
| Hot-rolled plate | Approximately 2-80 mm | Up to approximately 2,100 mm | Wider, thicker and special-alloy plate may require a different mill or forged route. |
| Cut-to-length sheet / plate | Within parent coil or plate capability | Lengths up to approximately 14,000 mm in selected routes | Levelling, edge, flatness and transport limits must be defined. |
Indicative ranges consolidate published capabilities from multiple established producers. Availability depends on material, grade, specification, manufacturing route, quantity and current mill capability.
| Designation | General route | Sourcing consideration |
|---|---|---|
| 1D / No. 1 | Hot rolled, heat treated and descaled or pickled | Common industrial plate and hot-rolled sheet finish. |
| 2D | Cold rolled, heat treated and pickled | Smooth matt finish; confirm surface acceptance criteria. |
| 2B | Cold rolled, heat treated, pickled and skin passed | Widely specified general-purpose smooth finish. |
| 2R / BA | Cold rolled and bright annealed | Reflective finish; protection and surface handling matter. |
| No. 3 / No. 4 | Mechanically polished | Confirm abrasive grade, roughness, direction and protective film. |
| 2K | Satin polished | Confirm visual reference, roughness and fabrication direction. |
Technical data is provided for preliminary sourcing guidance. The applicable customer specification, drawing, purchase order and latest standard revision govern each requirement.
Control begins with the enquiry.
Review can include grade and heat-treatment condition, dimensional tolerances, surface and edge requirements, mechanical tests, corrosion tests, ultrasonic examination, traceability, inspection documents and marking.
Bhansali reviews the requirement and documentation, coordinates QA/QC through its in-house team, verifies material testing through independent laboratories and can coordinate third-party inspection through agencies such as TÜV, SGS and Lloyd’s.
Connect product, material and control.
Send the complete flat-product requirement.
Include material, grade, condition, specification, dimensions, finish, quantity, testing, documentation and delivery need.
