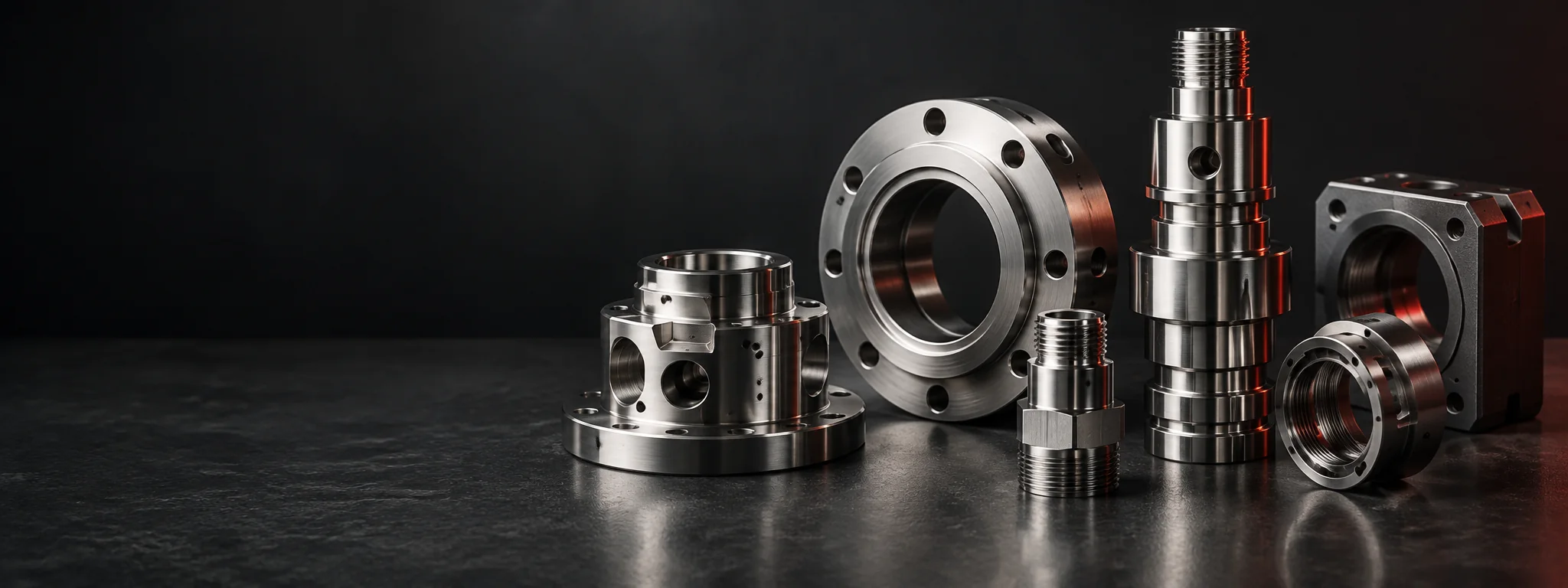

Machined Components.
Drawing-controlled components sourced through suitable machining routes with material, process, inspection and documentation aligned.
Defined by the requirement.
We coordinate the sourcing route around material, condition, dimensions, quantity, applicable standard, inspection, documentation and delivery. Manufacturing and processing routes are selected to suit the complete requirement.
| Form / type | Sourcing context |
|---|---|
| Turned components | Rotational parts from bar, tube, forging or cut blank. |
| Milled components | Prismatic and multi-axis geometries. |
| Drilled and threaded parts | Hole patterns, internal features and controlled threads. |
| Finished assemblies | Machined parts with specified treatment, marking and assembly. |
Materials in product context.
| Material family | Representative grades | Product / standard route | Typical application context |
|---|---|---|---|
| Stainless Steel | 304L, 316L, 410, 17-4PH, 15-5PH, XM-19 | Bar, plate, tube or forging route | Valve internals, precision hardware and equipment parts |
| Duplex & Nickel Alloys | 2205, 2507, 625, 718, C-276 | Forged or wrought machining stock | Corrosion-resistant and high-integrity components |
| Aluminium | 2024, 6061, 6082, 7075 | Plate, bar and extrusion | Lightweight structures, fixtures and housings |
| Engineering Steels | 1045, 4140, 4340, 8620, tool-steel routes | Bar, forging and pre-machined blank | Shafts, gears, dies and load-bearing parts |
Technical data is provided for preliminary sourcing guidance. The applicable customer specification, drawing, purchase order and latest standard revision govern each requirement.
Common specification routes.
| Product route | Principal standards | Requirement focus |
|---|---|---|
| Drawing definition | ASME Y14.5; ISO 1101 | Datums, geometric tolerances and inspection basis |
| Surface texture | ISO 1302; ASME B46.1 | Roughness parameter, direction and sampling |
| General tolerances | ISO 2768 where invoked | Linear, angular and geometric tolerance class |
| Threads | ASME B1 series; ISO metric-thread standards | Form, class, gauge and inspection |
| Material supply | Applicable ASTM/ASME/EN/AMS product specification | Grade, condition, traceability and test certification |
| Special processes | Customer-approved process specification | Heat treatment, coating, NDT and validation |
Technical data is provided for preliminary sourcing guidance. The applicable customer specification, drawing, purchase order and latest standard revision govern each requirement.
Control from enquiry to release.
Bhansali reviews requirements and documentation. QA/QC is coordinated by the in-house Bhansali team, material testing is verified through independent laboratories, and third-party inspection can be coordinated through agencies such as TÜV, SGS and Lloyd’s.
Review can include material certificates, heat traceability, manufacturing records, dimensional reports, NDE, test results, marking, packing and the final documentation package.
Connect form, material and application.
Send the complete machined components requirement.
Include material, grade, standard, dimensions, quantity, testing, documentation and delivery need.
